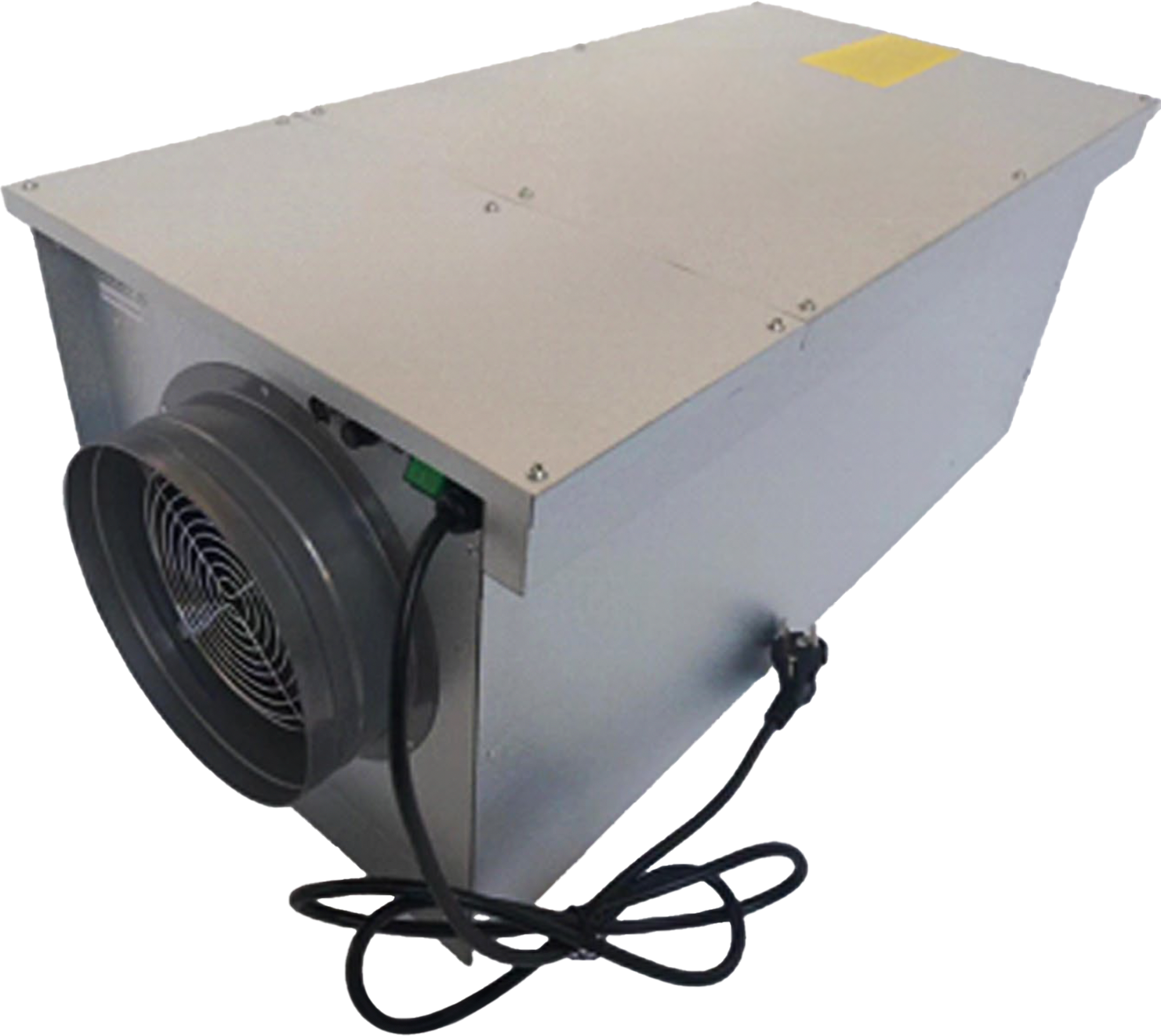

Genano 3G-680 Duct Filter with Fan

This advanced and versatile filtering solution is designed to complement our stand-alone air decontamination units.

The Genano 3G-680 efficiently purifies indoor air by eliminating airborne impurities, whether used as a standalone unit or integrated into an HVAC system. With its built-in fan, the Genano 3G-680 can also serve as a fresh air unit, filtering outdoor air before it enters the building. This ensures that cleaner air circulates through air conditioning and ventilation systems, maintaining a healthier indoor environment by reducing contaminants.

The features of Genano 3G-680 duct filter:

- High efficiency particle filtering down to 0.1 microns

- Integrated activated carbon for gas adsorption

- LED UVC for microbial elimination

- The fan optimises filtration performance, whether used with ducting or as a standalone unit.

Clean Air Delivery Rate

70-653 m3/h

Particle cleaning efficiency (air speed 420 m3/h)

2.5 µm: 99.8%

Filter

Particle/Activated carbon 300x300x270 mm 8 pockets

UVC Light

Highest rating (16/16) in MERV/URV classification

Dimensions (W x H x D)

359 x 311 x 809 mm

Weight

14 kg

Chassis

Aluminium, painted steel

Installation

Duct, ceiling, wall

Power consumption

Max 145W

Sound level

25–54 dBa at 3 m

Rated voltage

220-240 V, 50/60 Hz

Usage temperature

+5…+40 °C

The Operating Principle

Multi-step system to purify air efficiently

It charges incoming particles, capturing them on a two-part filter bag with an enhanced particle filter for fine particles and activated carbon for gases. The unit’s fan maintains airflow, while UVC light periodically destroys bacteria and viruses on the filter.

Genano 3G-680 Duct Filter with Fan

Prevents from airborne infections from spreading

Easy plug & play installation

Removes gases and odors
